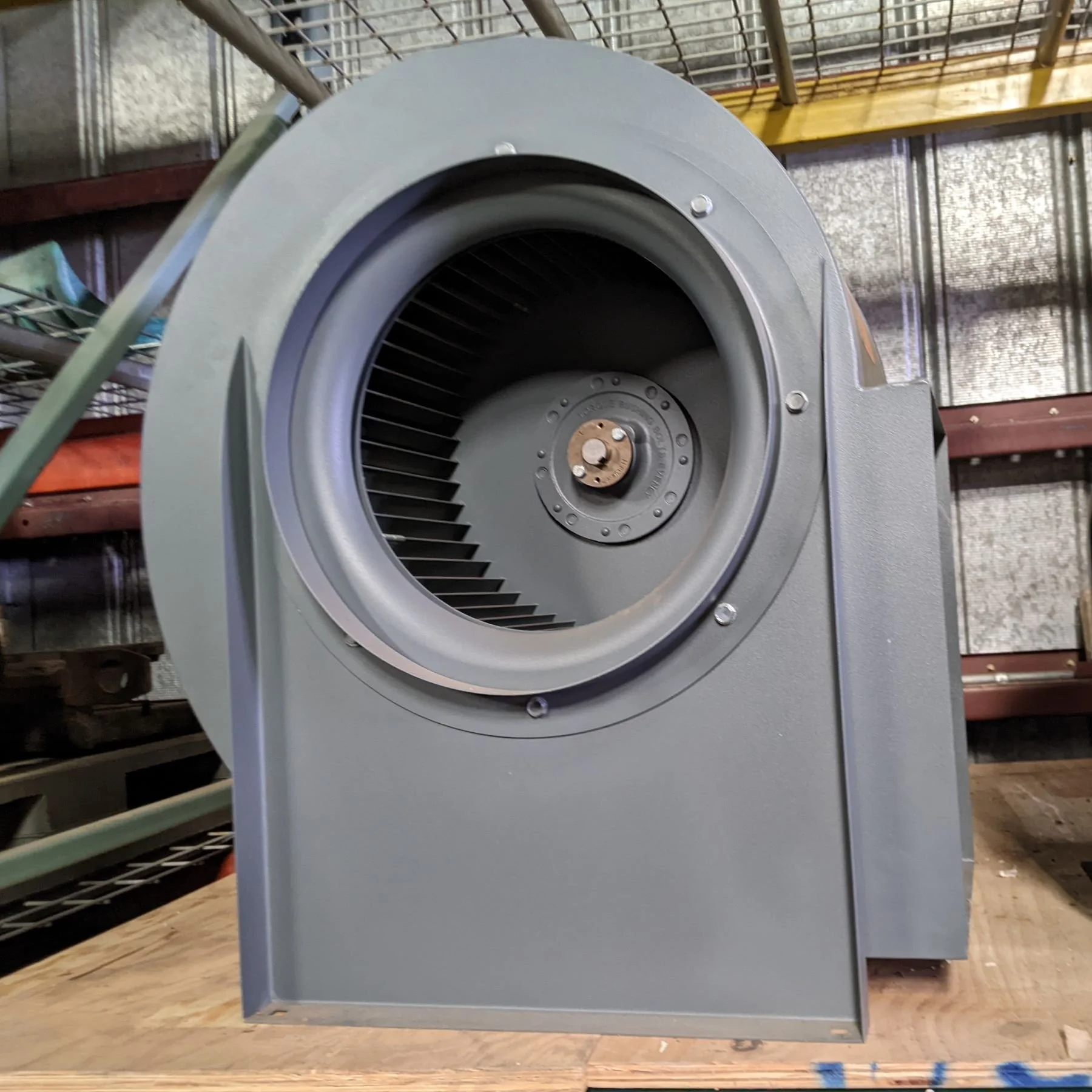

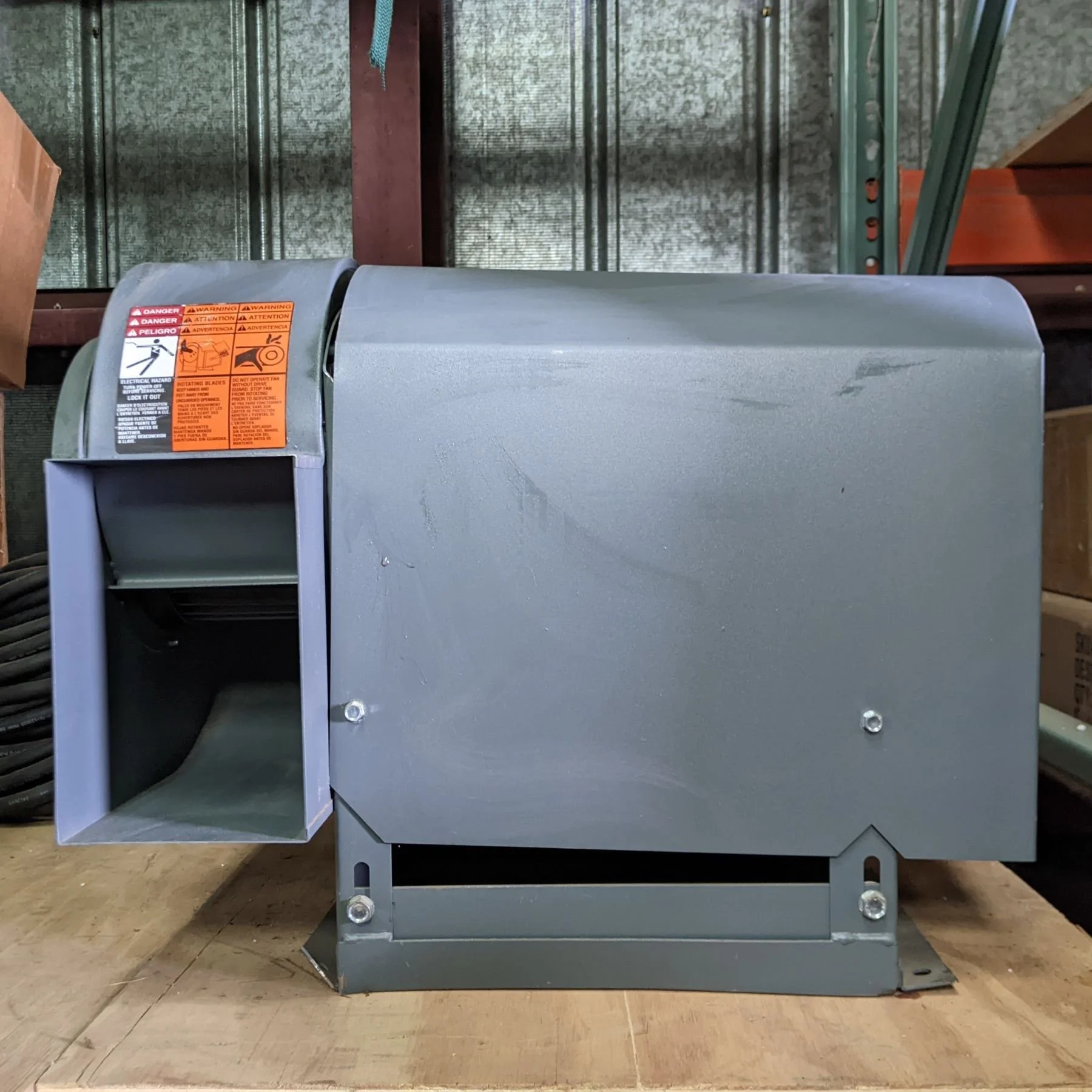

Dayton Belt Drive Forward Curve Blowers
Dayton Forward Curve Blowers available:
Model 2C798 - 15 in Wheel Diameter, 1-1/2 HP, Blower without motor - 15” wheel / 30” height / 4,525 cfm max
Model 3C539 - 12 1/4 in Wheel Diameter, 3-5 HP, without drive package 7 3/4” wheel / 18” height / 1,795 cfm max
Model 4C130A - 12 1/2 in Wheel Diameter, 4100 RPM, 1 - 3 HP - high pressure blower, for dusty high static pressure applications 12 1/2” wheel / 25” height / 4,100 cfm max
Direct-drive blowers without drive do not come with a drive motor. Their blower wheels mount directly onto the motor shaft which reduces friction and improves efficiency compared to a belt-drive fan. Direct-drive fans have fewer moving parts and typically require less maintenance than belt-drive fans.
These were purchased in 2014 from Grainger as open box or returns, and never installed.
Dayton Forward Curve Blowers available:
Model 2C798 - 15 in Wheel Diameter, 1-1/2 HP, Blower without motor - 15” wheel / 30” height / 4,525 cfm max
Model 3C539 - 12 1/4 in Wheel Diameter, 3-5 HP, without drive package 7 3/4” wheel / 18” height / 1,795 cfm max
Model 4C130A - 12 1/2 in Wheel Diameter, 4100 RPM, 1 - 3 HP - high pressure blower, for dusty high static pressure applications 12 1/2” wheel / 25” height / 4,100 cfm max
Direct-drive blowers without drive do not come with a drive motor. Their blower wheels mount directly onto the motor shaft which reduces friction and improves efficiency compared to a belt-drive fan. Direct-drive fans have fewer moving parts and typically require less maintenance than belt-drive fans.
These were purchased in 2014 from Grainger as open box or returns, and never installed.
Dayton Forward Curve Blowers available:
Model 2C798 - 15 in Wheel Diameter, 1-1/2 HP, Blower without motor - 15” wheel / 30” height / 4,525 cfm max
Model 3C539 - 12 1/4 in Wheel Diameter, 3-5 HP, without drive package 7 3/4” wheel / 18” height / 1,795 cfm max
Model 4C130A - 12 1/2 in Wheel Diameter, 4100 RPM, 1 - 3 HP - high pressure blower, for dusty high static pressure applications 12 1/2” wheel / 25” height / 4,100 cfm max
Direct-drive blowers without drive do not come with a drive motor. Their blower wheels mount directly onto the motor shaft which reduces friction and improves efficiency compared to a belt-drive fan. Direct-drive fans have fewer moving parts and typically require less maintenance than belt-drive fans.
These were purchased in 2014 from Grainger as open box or returns, and never installed.
Blower specifications:
Model 2C798
Wheel diameter - 15 in
Wheel width - 7-5/8 in
Inlet diameter - 16-1/8 in
Outlet height - 16-1/4 in
Outlet width - 11-3/4 in
Overall width - 34 in
Overall height - 30 in
Overall depth - 27 in
Maximum airflow - 4,525 cfm
Model 3C539
Wheel diameter - 7-1/4 in
Wheel width - 4-1/2 in
Shaft diameter - 1-3/16 in
Outlet height - 7 in
Outlet width - 6 in
Overall width - 13-5/8 in
Overall height - 18 in
Overall depth - 24-7/8 in
Maximum airflow - 1,795 cfm
Model 4C130
Wheel diameter - 12-1/2 in
Wheel width - 3 in
Shaft diameter - 1 in
Outlet height - 5 in
Outlet width - 4 in
Overall width - 18 in
Overall height - 25 in
Overall depth - 18 in
Maximum airflow - 1,141 cfm
Max Fan Speed - 4,100 cfm
