CPC Food Grade Quick Disconnects
Sets of inline quick disconnects from Cooler Products Company (CPC). The products are high quality food grade items.
The HFC35 Series disconnects can operate in harsh environments in temperatures from -40°F to 280°F (-40°C to 138°C) and pressures from vacuum to 125 psi (8.6 bar). An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate.
(A) CPC HFC35 Series polysulfone quick disconnect set including the following tiems:
Coupling body 3/8” barb - HFC10635 – overall dimensions 1.44” x 2.73”
NPT 3/4” insert - HFCD241235 – overall dimensions 1.23” x 2.22”
NPT 1/2” insert - HFCD24835 – overall dimensions 1.16” x 1.97”
Barbed insert 1/2” - HFCD22812 – overall dimensions 1” x 1.91”
Elbow 1/2” hose barb insert - HFCD22835 – overall dimensions 1” x 1.91”
(B) CPC Series 35 polysulfone quick disconnect set including the following items:
Coupling body 1/2” barb - HFC10835 – overall dimensions 1.44” x 2.73”
NPT 3/4” insert - HFCD241235 – overall dimensions 1.23” x 2.22” (2 each)
NPT 1/2” insert - HFCD24835 – overall dimensions 1.16” x 1.97”
Barbed insert 1/2” - HFCD22812 – overall dimensions 1” x 1.91”
(C) CPC beer and gas quick disconnects. SMC Series Connectors are CPCs smallest twist-to-connect couplings with 1/4" barbed connections which can be used with tubing ID 3/16" through 5/16", activated by a shrouded thumb latch. The temperature range is -40F to 180F. They can handle a vacuum to 120 psi. The plastic is acetal, the valve spring is 316 stainless steel, and the o-rings are food grade buna-n. These are available in a set of the following components:
Coupling body with ¼” hose barb - PMCD1604 – overall dimensions 0.81” x 1.25” (4 each)
Coupling insert with ¼” hose barb - PMCD2204 – overall dimensions 0.5” x 1.22” (2 each)

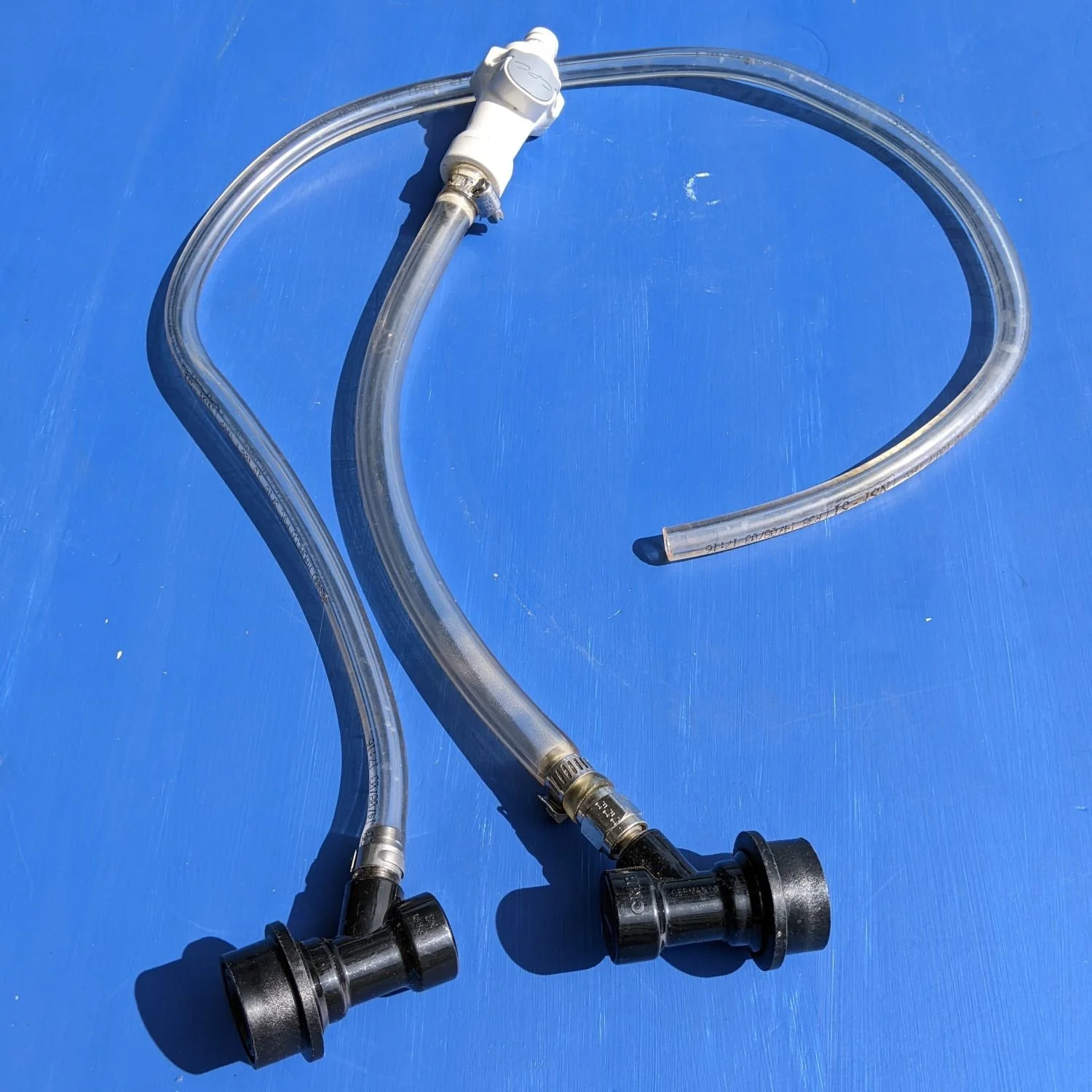

(D) Hose assemblies with type C disconnects (1 coupler, and 3 inserts), oxygen stone, brass connections, and hose. Used.
(E) Hose assembly with 1/2" barbed QD coupler and two CM Becker gas connect
With exception of the assemblies, all new old stock, unused.
