Tri-Clamp Elbows - Large

An assortment of large and uniquely shaped elbows with tri-clamp ends.

Dimensions are shown as ?” TC (diameter(s) of tri-clamp) x ?” OD (outside diameter of tube) x ?” (length from center of tube to tri-clamp - see diagram in photos)

90° Elbows:

• (A) 1” TC – 1/2” OD x 3.75” (approx)

• (B) 1” TC – 1/2” OD x 3.75” (approx) - not shiny

• (C) 1” TC – 3/4” OD x 1.5” (approx)

• (D) 1.5” TC – 1” OD x 6” x 6” (approx) with offset

• (E) S-Shaped Elbow 8" overall, 1.5" OD with 2" TC each end

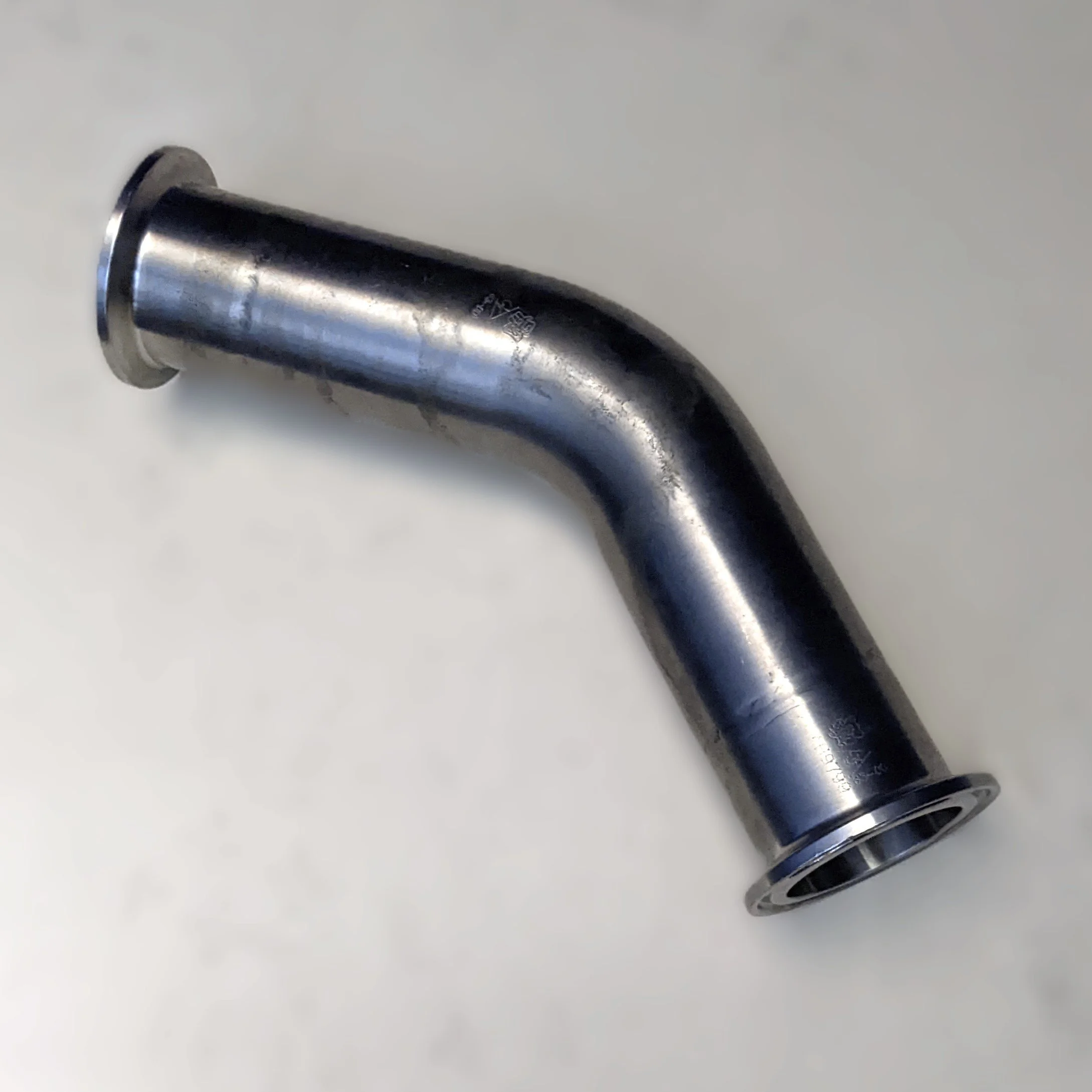

45° Elbow:

• (F) 2” TC x 1.5” OD x 6.75” (approx)

Double bend - U-shaped:

• (G) 1” TC - 1/2” OD x 5” x 4” (approx)

• (H) 1” TC - 1/2” OD x 12” x 5” (approx)
